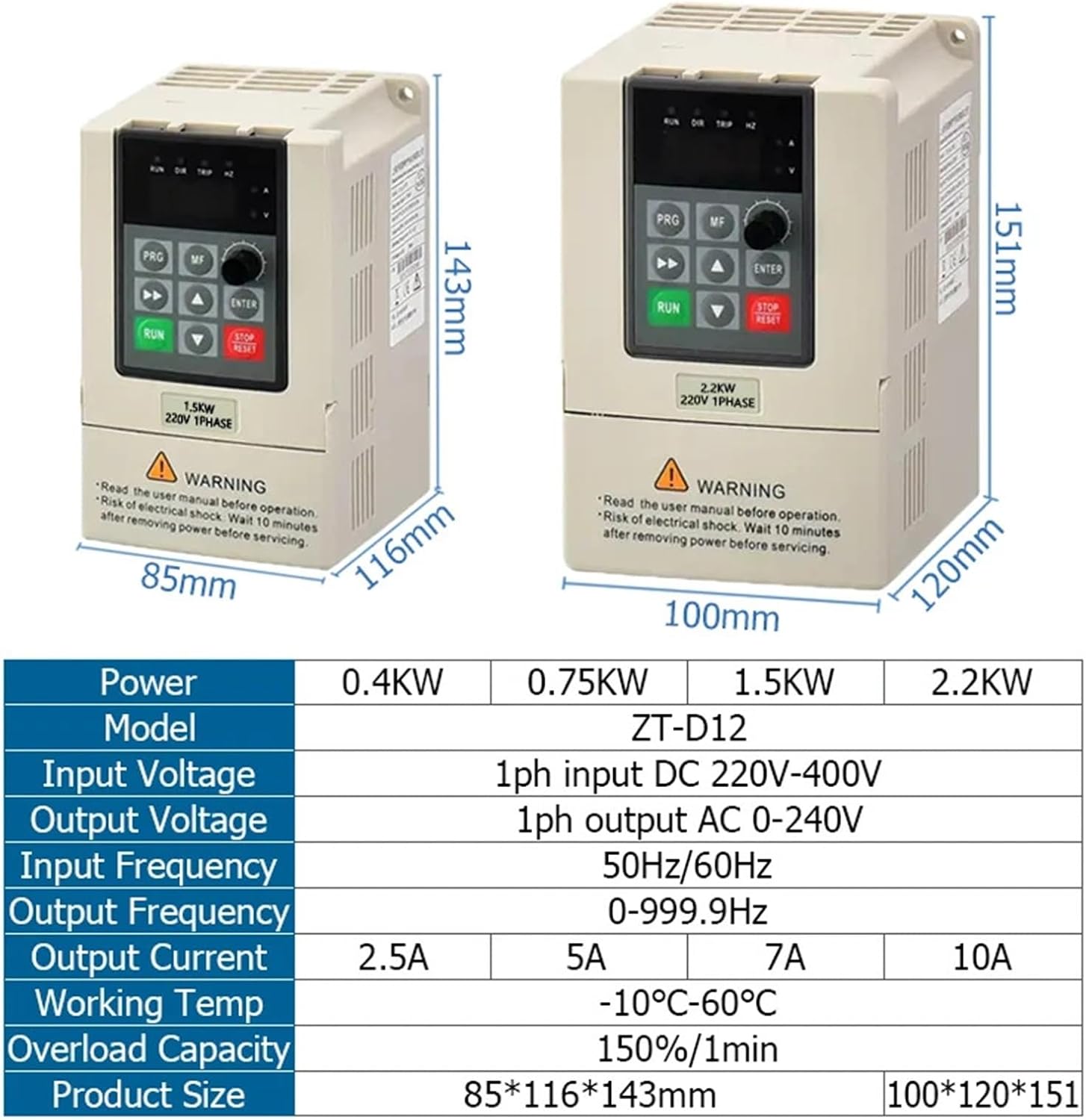

1PCS Solar VFD Inverter Single-Phase Input DC280V-400V 1ph Output 220V 0.4KW 0.75KW 1.5KW 2.2KW Single-Phase Pump Speed Controller(0.4KW-0.5hp,1ph AC0-240V)
Product details
| Management number | 210756170 | Release Date | 2026/04/02 | List Price | $113.92 | Model Number | 210756170 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Solar & Wind Power InvertersTechnical Index and SpecificationInput:1.Voltage: 1-phase DC280V~440V, 50/60Hz.2.Logic Input: X1-X5 (forward/reverse, spot, multispeed, UP/DOWN frequency feed).3.Analog input: AVI:0-10V/0-20mA(Switching via jumper caps).Output:1.Voltage: 1-phase AC0-240V,3-phase AC0-240V.2.Frequency: 0~999.9Hz.3.Analog Output: AO1:0-10V(Switching via jumper caps).4.Relays Output: TA/TB/TC, one normally open, one normally closed.5.Open Collector Output: 1 way, Y.Control Mode:V/F control, No PG vector control, Built-in PID control, Built-in RS485.Protective Function:Overcurrent, overvoltage, undervoltage, module fault,electric thermal relay, overheat, short circuit, default phase of input and output,motor parameter adjustment abnormality, internal memory fault, etc.Safety Precaution:1. With single phase motors, it is recommended that the capacitor on the motor be removed.2. The selected power supply voltage must be the same as the VFD input voltage specification.3. Before wiring, please make sure the input power is disconnected.4. Please ask a professional electrical engineer to do the wiring work.5. Grounding terminal, please be sure to ground.6. Disconnect the main circuit power before inspection and maintenance.7. Please connect the braking resistor according to the wiring diagram.8. Do not touch the terminals of VFD, it is very dangerous with high voltage.9. Do not change the wiring or disassemble the terminals during power-on.10.Do not modify the inverter without authorization.==========Hign-concerned Chemical : Noneis_customized : YesOutput Current : 2.5A/5A/7A/10AOutput Frequency : 0-999HzModel Number : ZT-D12SType : DC/AC InvertersWeight : 1.6kgOutput Type : 1PH220VPower : 0.4KW,0.75KW,1.5KW,2.2KWInput voltage : 1ph DC220V-400VInput frequency : 50/60HzOverload capacity : 150%Protection Class : IP20Cooling method : Fan cooled
- Solar & Wind Power Inverters
- 1PCS Solar VFD Inverter Single-phase Input DC280V-400V 1ph Output 220V 0.4KW 0.75KW 1.5KW 2.2KW Single-phase Pump Speed Controller
| Brand | NRMGMGT |
|---|---|
| Color | 0.4KW-0.5hp |
| Wattage | 1 kWh |
| Model Name | NRMGMGT |
| Manufacturer | NRMGMGT |
| Model Number | NRMGMGT |
| Power Source | Battery Powered |
| Mfr Part Number | NRMGMGT |
