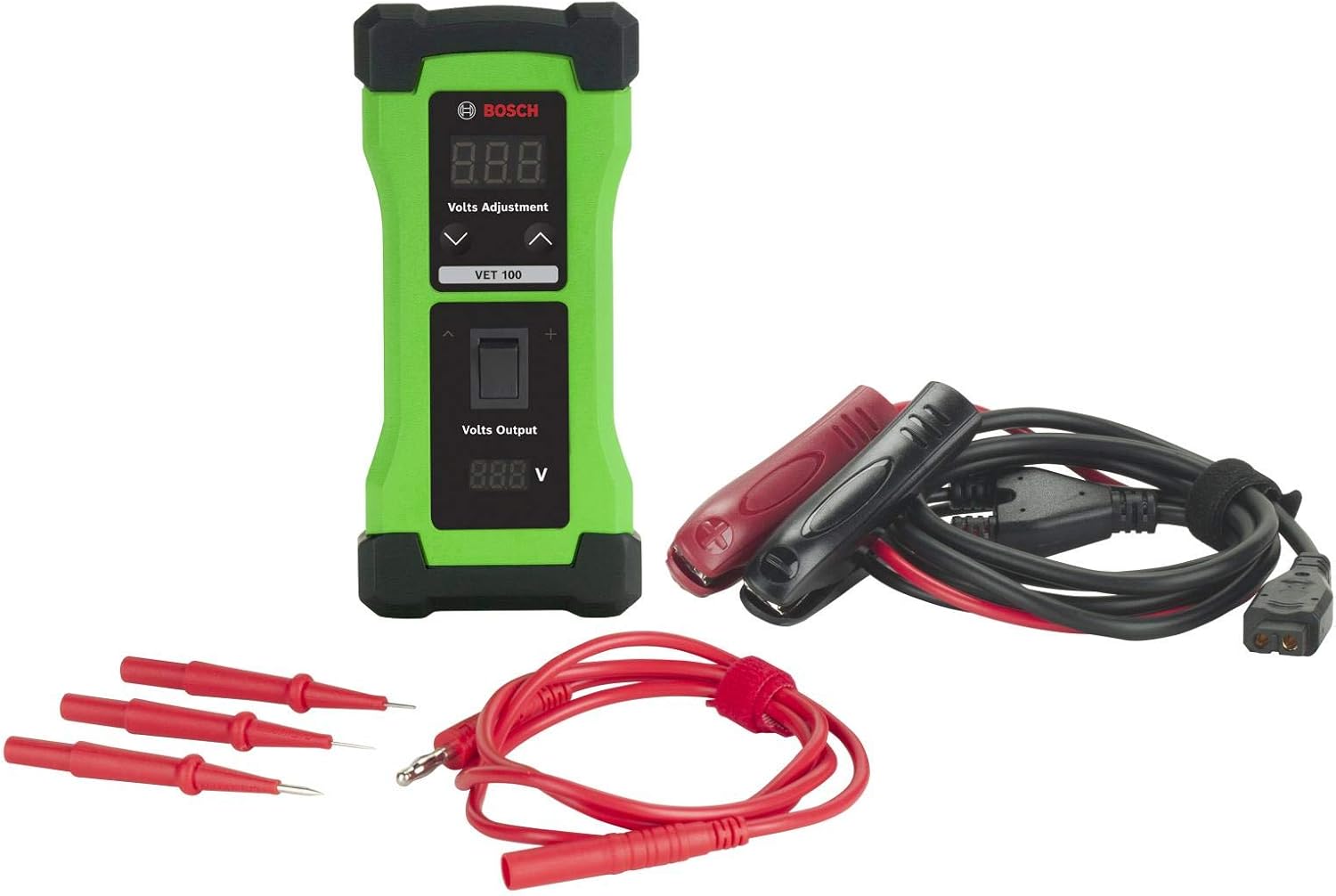

Bosch 3920 Vet 100 Circuit Analysis Tool for use with Scan Tools to Identify Faulty Sensors, Wiring Harnesses, or Issues with PCM
Product details
| Management number | 210262754 | Release Date | 2026/04/02 | List Price | $80.69 | Model Number | 210262754 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Bosch VET 100 Circuit Analysis Tool is perfect for data stream analysis using your scan tool. With quick and easy setup, you can identify faulty sensors, wiring harnesses, and/or issues with PCMs as the next step after code/ no code scan tool diagnostics. The tool helps troubleshooting accuracy by pinpointing circuit diagnostic component failure. Product Features: Save time and quickly identify failed circuit component, wiring harness or ECM, use with any scan tool during data stream analysis, simulates the sensor you are diagnosing by inputting a determined voltage at the sensor location, allows input voltage from .5VDC - 7VDC in .5VDC increments. With scan tool, verify if correct voltage is being applied to circuit. Bypass sensor to send desired voltage back to PCM
- Use with any scan tool (not included) during data stream analysis to save time and quickly identify a failed circuit component, wiring harness, or ECM
- Simulates the sensor you are diagnosing by inputting a determined voltage at the sensor location (from .5VDC - 7VDC in .5VDC increments)
- With scan tool, verify if correct voltage is being applied to circuit
- Bypass sensor to send desired voltage back to PCM for testing
- Works with 12V and 24V systems; kit includes: circuit analysis tool, 6ft (1.83m) power cable, 1m cable for the probe tip, 2mm flat terminal, 2mm probe tip, pin tip probe, and user manual
| UPC | 028851045216 |
|---|---|
| Color | Black, green |
| Model | 3920 |
| Brand Name | Bosch |
| Style Name | Classic |
| Unit Count | 1.0 Count |
| Item Weight | 1 Pounds |
| Manufacturer | Bosch Automotive |
| Power Source | Corded Electric |
| Item Type Name | Circuit analysis tool, 6 ft. power cable, 1m probe tip cable, 2mm flat terminal, 2mm probe tip, Pin tip probe, user manual |
| Item Dimensions | 9 x 5 x 3 inches |
| Included Components | Circuit analysis tool, 6 ft. power cable, 1m probe tip cable, 2mm flat terminal, 2mm probe tip, Pin tip probe, user manual |
| Warranty Description | Per Contract with Amazon |
| Minimum Operating Voltage | 0.5 Volts (DC) |
