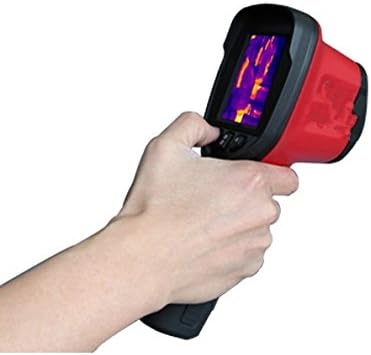

GOWE Handheld 120 * 120 Resolution Industry Temperature Measurement Thermal Imaging Camera Thermal Imager Camera

Items;Technical Specification; Detector characteristics; Detector type; Un-cooled FPA micro-bolometer; Array size/format; 120*120; 80*80; Pixel size; 25um; Spectral range; 8-14um; Thermal sensitivity; ¡Ü0.06 C@30C; Frame frequency; 50HZ; Lens; Field of view/min focus distance; 33¡ã*33¡ã; 23¡ã*23¡ã; Spatial resolution (IFOV); 5mrad; Focus range; 0.5m~¡Þ; Focus; Focus free; Image characteristics; Spatial resolution (IFOV); 5mrad; Built-in CCD camera; 0.3 million pixels; Image display;

• Items;Technical Specification; Detector characteristics; Detector type; Un-cooled FPA micro-bolometer; Array size/format; 120*120; 80*80; Pixel size; 25um; Spectral range; 8-14um; Thermal sensitivity; ¡Ü0.06 C@30C; Frame frequency; 50HZ; Lens; Field of view/min focus distance; 33¡ã*33¡ã; 23¡ã*23¡ã; Spatial resolution (IFOV); 5mrad; Focus range; 0.5m~¡Þ; Focus; Focus free; Image characteristics; Spatial resolution (IFOV); 5mrad; Built-in CCD camera; 0.3 million pixels; Image display;
• LCD display; 3.2" TFT LCD, 240 x 320; Palette; 4 palettes changeable; Image control; Auto; Image type; IR&CCD switch,IR&CCD fusion; Measurement; Temperature ranges; -20C- +250C; Accuracy; ¡À 2 ¡ãC or ¡À 2% of reading, Whichever is greater; Measurement correction; Automatic / manual; Measurement mode; 1 central spot. Hottest spot/coldest spot tracking Alarm(voice, color); Setup functions; Date/time, temperature unit, language;
• Emissivity correction; Variable from 0.01 to 1.0; Image storage; Storage card; Built in flash, max 5000 images; Storage mode; Manual saving, IR image saving, IR&visual image fusion saving; File format; JPEG with original thermal measurement data included; Voice annotation; Input via built-in microphone up to 60 seconds of digital voice clip per image stored with image; Power source; Battery type;
• Li-Ion, rechargeable; operating time; 3 hours; Battery charging mode; USB; Power saving; Auto-sleep and auto-shut down; Environmental; Operating temperature; -15C-- +50C; Storage temperature; -25C-- +60C; Humidity; Operating and storage:¡Ü90% non-condensing; Encapsulation; IP54; Vibration; 2G, IEC68-2-6; Shock; 25G, IEC68-2-29; Safety specification; EMC; CE/FCC compliant; Physical characteristics
• Weight; 485g;Dimension; 240*86*132mm(L*W*H); Interface; Mini-USB; Power supply/Date transmission
