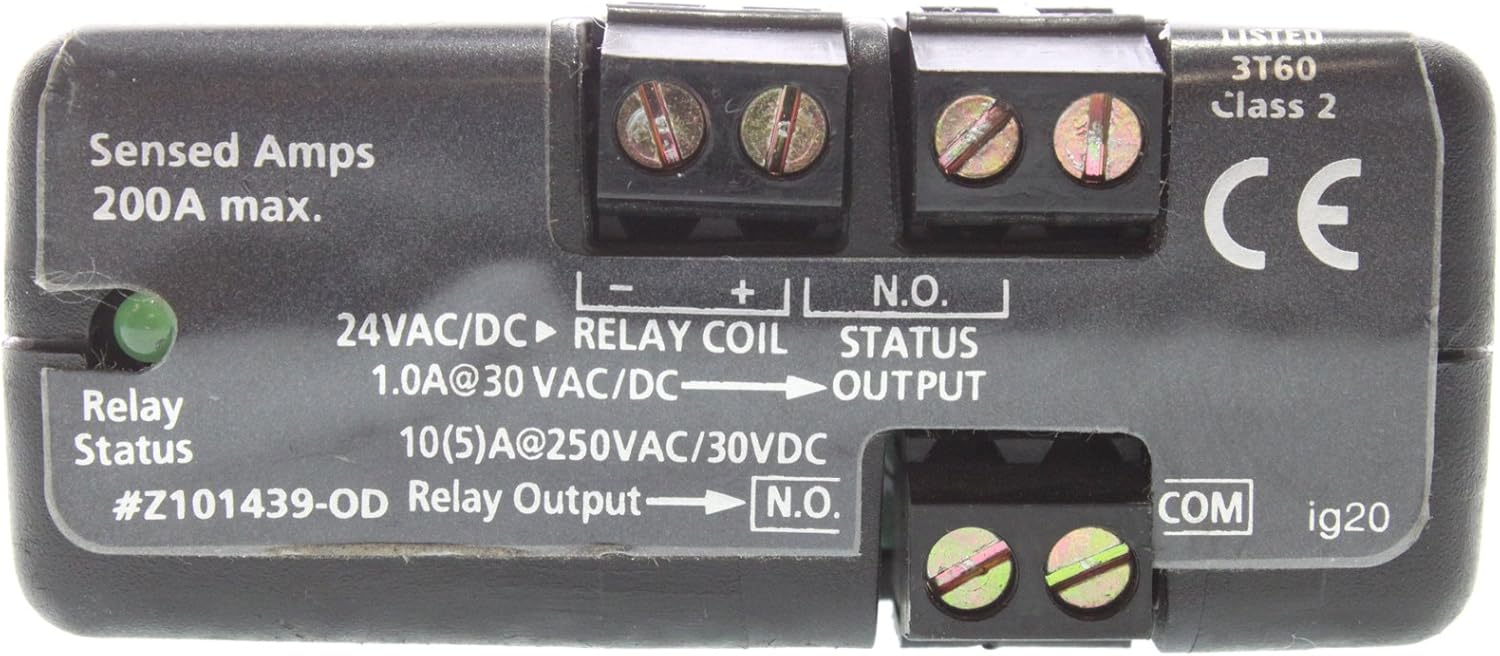

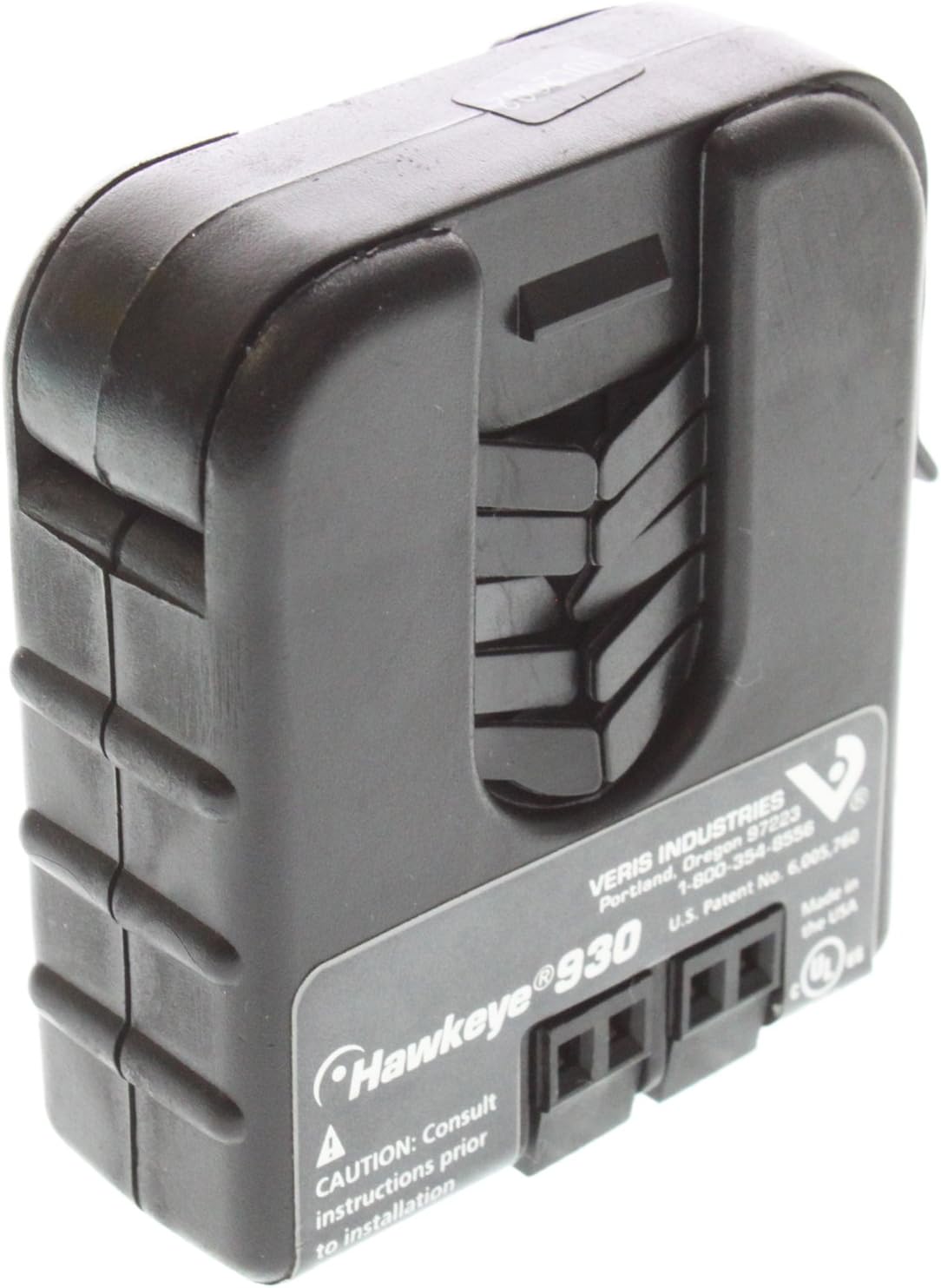

Veris,Current Sw & SPST Relay,Split,Fxd,N.O, H930
Product details
| Management number | 211059329 | Release Date | 2026/04/04 | List Price | $24.00 | Model Number | 211059329 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Sensor Power Induced from monitored conductor. Insulation Class 600VAC RMS. Temperature Range -15° to 60°C (5° to 140°F). Humidity Range 10 - 90% RH non-condensing. Frequency 50/60 Hz. Terminal Block Maximum Wire Size 14 AWG. Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m). Agency Approvals UL 508 open device listing. Do not use the LED status indicators as evidence of applied voltage.
- The Hawkeye Relay Combination Series combines an on/off status sensor and command relay in one package, saving the labor, wire runs, and space required to mount a separate relay.
- The switch and relay (not electrically connected) are in the same housing, saving space and cost.
- It is ideal for monitoring and controlling motors where belt loss is not a concern.
- Applications include: Monitoring direct drive units, exhaust fans, and other fixed loads. Monitoring on/off status of electrical loads. Starting/stopping motors. On/off status sensors and command relay for direct-drive fans, pumps and process motors. Reduce the number of installed components.
| UPC | 643129362576 |
|---|---|
| Model | H930 |
| Brand Name | Veris Industries |
| Item Weight | 6.4 ounces |
| Part Number | H930 |
| Coil Voltage | 600 Volts |
| Contact Type | Spst |
| Manufacturer | Veris |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Operation Mode | Off |
| Specification Met | UL |
| Upper Temperature Rating | 60 Degrees Celsius |
